Bespoke FabricationRadius Saw Blade Change Stand
A purpose-built stand to support a radius saw during blade change, designed and fabricated to suit the machine and the way the task is carried out on site.
Manufacturing · Industrial Fabrication
Projects & Portfolio
Engineering Work We Have Produced
A selection of the fabrication, welding and design work produced by Ventarus Engineering. These projects show the kind of practical, durable metalwork we deliver for manufacturing and industrial applications.
This portfolio is being added to as new work is completed and rendered.
Bespoke Fabrication
Design & FabricationRotation Stand
A rotation stand engineered to hold and rotate a component during assembly or finishing work, improving access and reducing manual handling.
Manufacturing · Industrial Fabrication
Motorsport ComponentsRacing Fuel Cell & Fuel Pump Mounting
Fabricated fuel cell components including a fuel pump mounting, prepared and pressure tested as part of the build process.
Motorsport · Fabrication & Welding
Fabrication & ModificationHeat Exchanger Examples
Examples of heat exchanger work carried out for industrial applications.
Industrial Processing · Fabrication & Modifications
Bespoke FabricationActuator Bracket
A bespoke actuator bracket designed from an engineering drawing and fabricated to suit the mounting arrangement and loading of the application.
Manufacturing · Industrial Fabrication
Design DrawingsMK 3 Outdoor Chassis
General arrangement and part drawings for an MK 3 outdoor chassis, prepared to support fabrication and assembly of the design.
Product Development · Design & Drawings
Radius Saw Blade Change Stand
Industry: ManufacturingService: Industrial Fabrication
The Challenge
Changing the blade on a large radius saw is an awkward, time-consuming job when the saw has to be supported manually or on unsuitable equipment.
The Engineering Solution
Ventarus assessed the machine, the blade-change procedure and the access available, then designed and fabricated a stand that holds the saw securely and makes the blade change safer and more straightforward.
Scope
Fabrication of a steel stand designed around the machine and its operating environment, working from on-site assessment and dimensions.

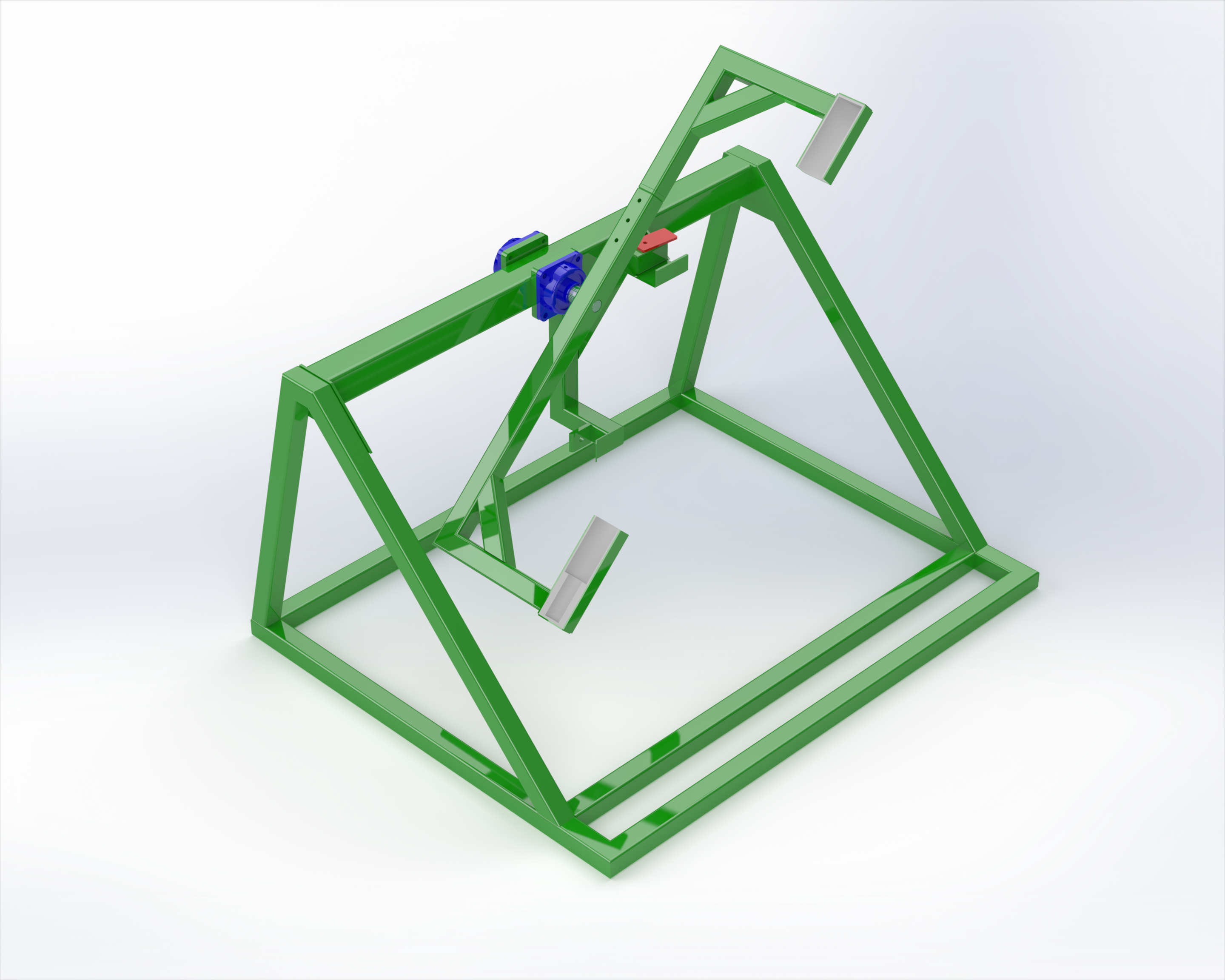

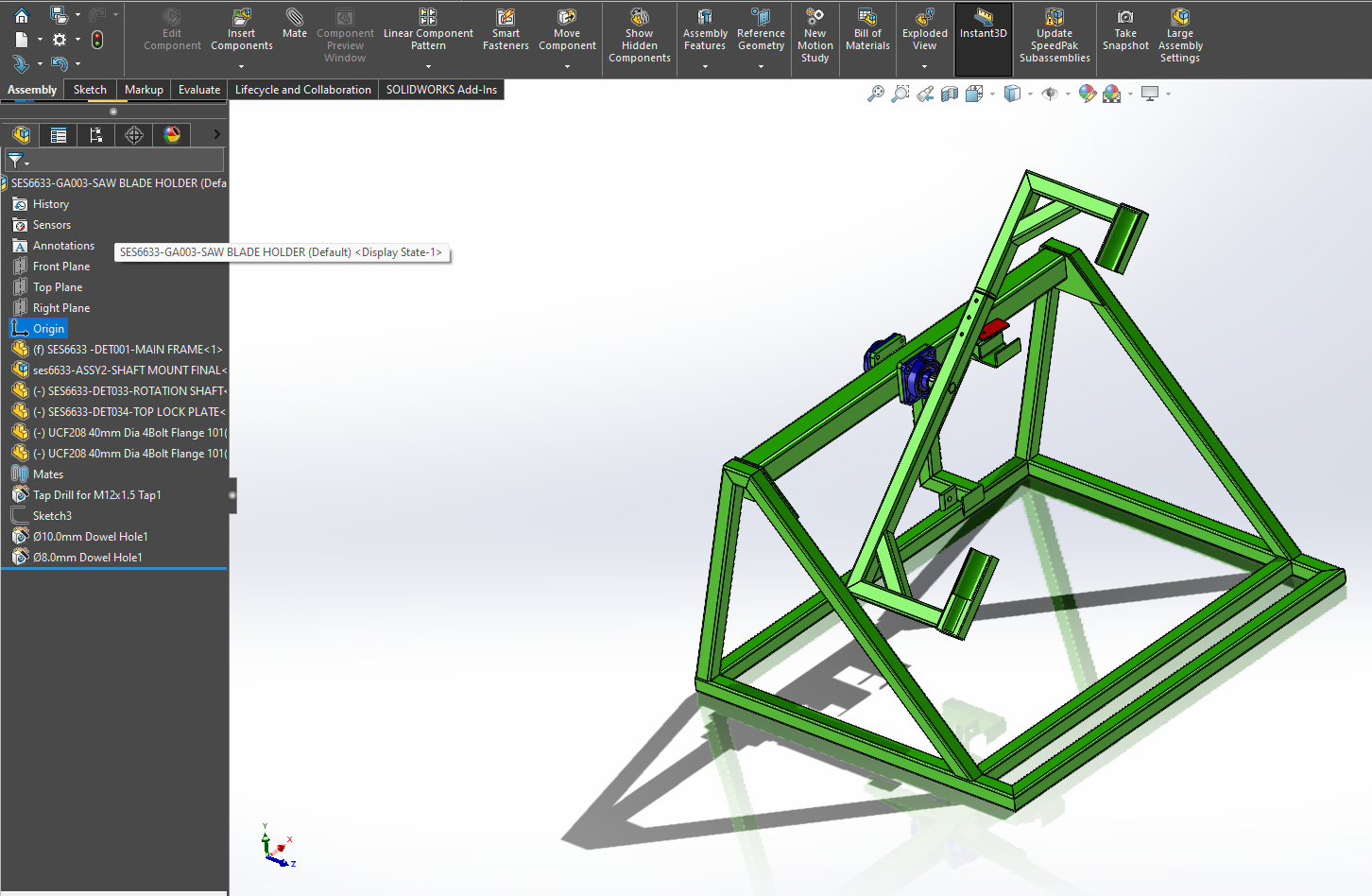

Rotation Stand
Industry: ManufacturingService: Industrial Fabrication
The Challenge
Operators needed a stable way to rotate a heavy component through the assembly process without repeated lifting and awkward repositioning.
The Engineering Solution
Ventarus designed and fabricated a rotation stand matched to the component geometry and working loads, giving operators controlled access from any angle.
Scope
Design, steel fabrication and assembly of a purpose-built rotation stand for a production application.

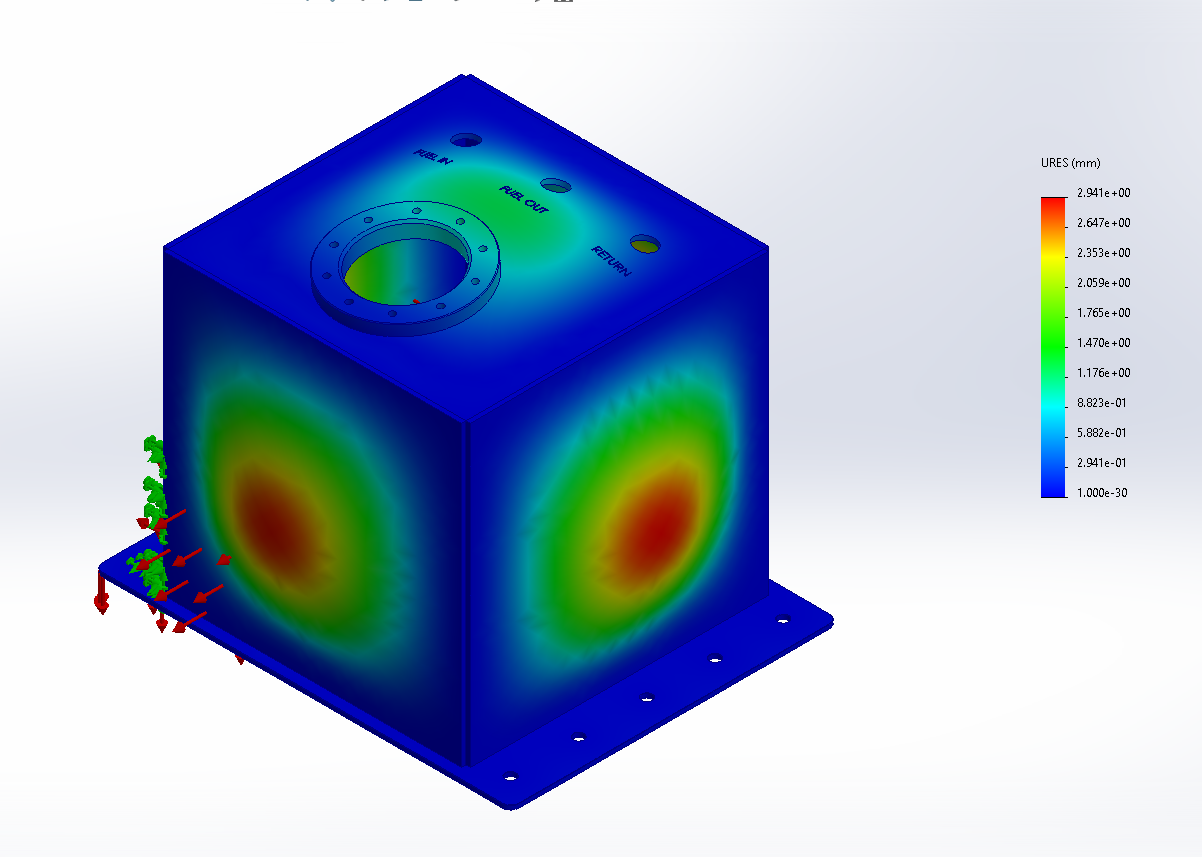

Racing Fuel Cell & Fuel Pump Mounting
Industry: MotorsportService: Fabrication & Welding
The Challenge
A racing fuel cell required a reliable fuel pump mounting and the fabricated assembly needed to be proven sound before installation.
The Engineering Solution
Ventarus fabricated the fuel pump mounting and carried out a pressure test of the fuel cell assembly to verify the integrity of the completed unit.
Scope
Component fabrication, welding and pressure testing of a racing fuel cell assembly.

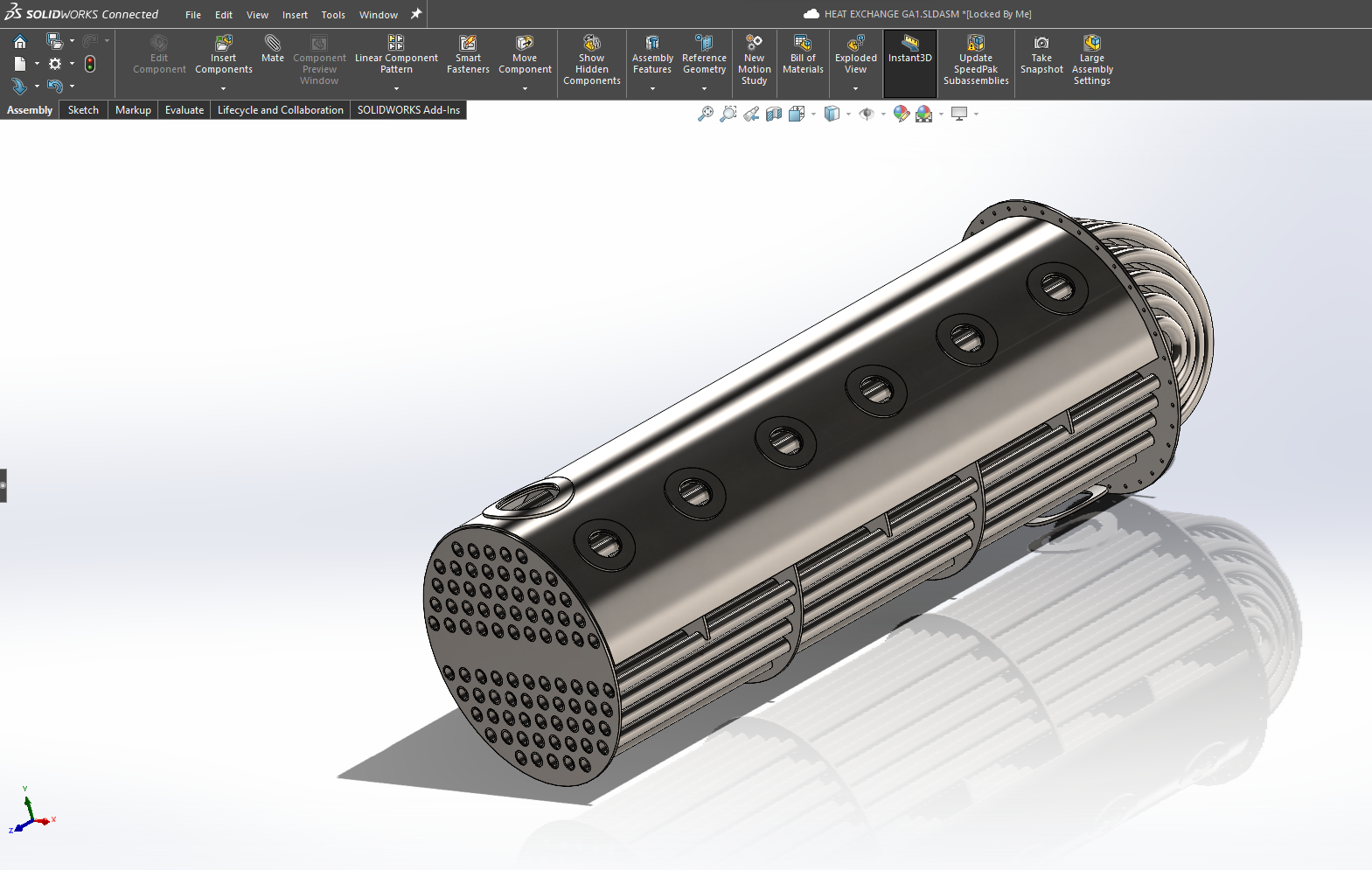

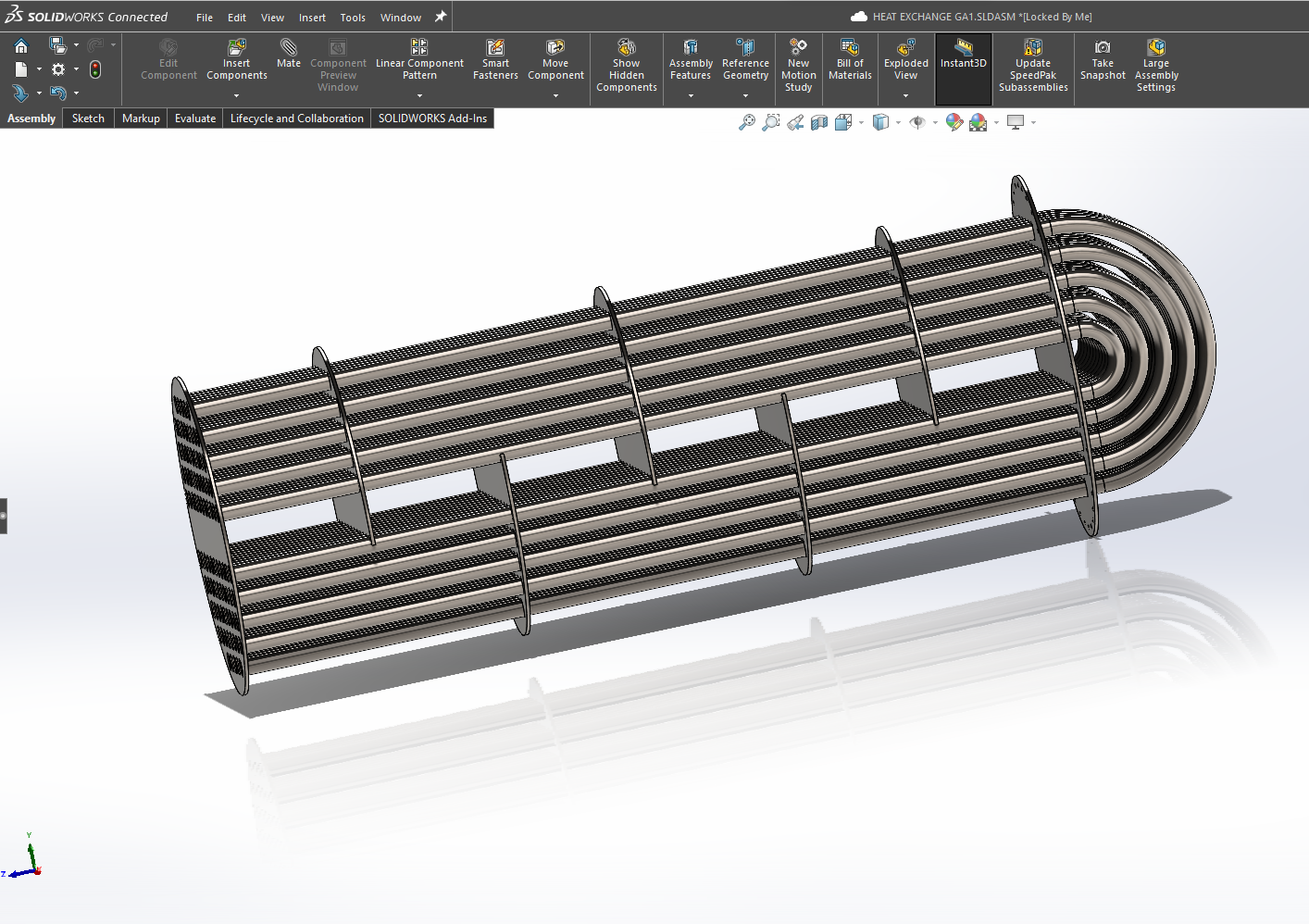

Heat Exchanger Examples
Industry: Industrial ProcessingService: Fabrication & Modifications
The Challenge
Heat exchangers in industrial service can present demanding fabrication and repair conditions, and off-the-shelf solutions do not always suit the application.
The Engineering Solution
Ventarus assessed each exchanger and its operating conditions, then carried out the fabrication, welding or modification work required for the application.
Scope
Assessment and fabrication work on industrial heat exchanger components.

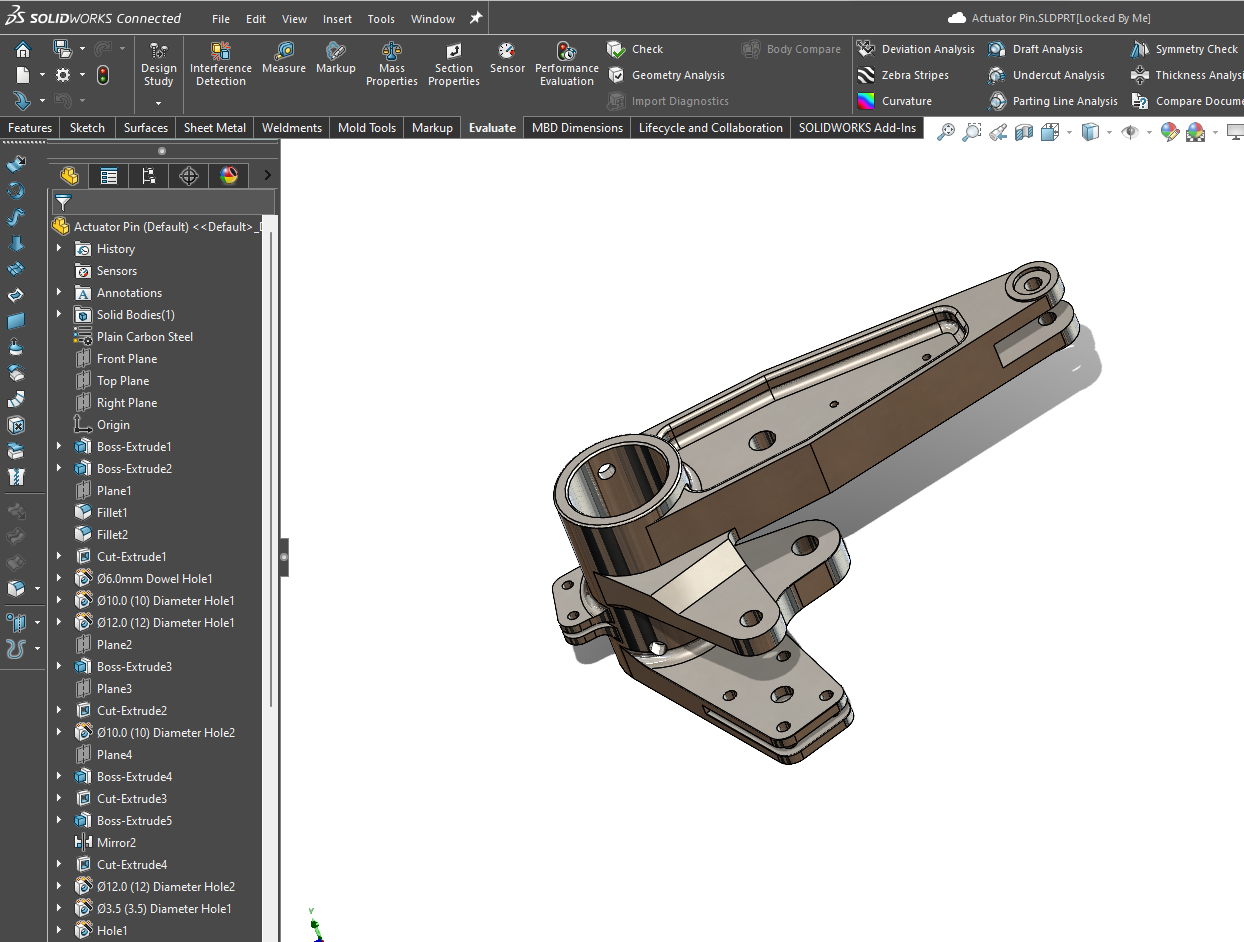

Actuator Bracket
Industry: ManufacturingService: Industrial Fabrication
The Challenge
The customer required a bracket to mount an actuator reliably in a confined space, with no suitable off-the-shelf option available.
The Engineering Solution
Working from the customer's drawing, Ventarus fabricated an actuator bracket to the required dimensions, with the fixing and clearance details verified before manufacture.
Scope
Fabrication of a bespoke steel bracket to drawing, including drilling and preparation for fitment.
MK 3 Outdoor Chassis
Industry: Product DevelopmentService: Design & Drawings
The Challenge
A revised outdoor chassis design needed clear, workable general arrangement and part drawings so the build could proceed accurately.
The Engineering Solution
Ventarus produced the GA and part drawings for the MK 3 chassis, detailing the fabricated components and how they assemble.
Scope
General arrangement and part drawings for the MK 3 outdoor chassis.
